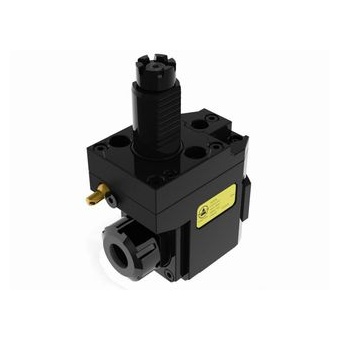

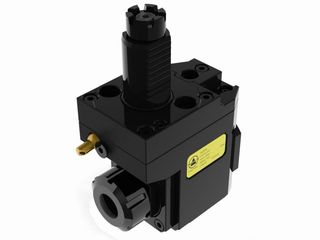

◎ VDI60-MT-ER50 Radial Offset Driven Tool Holder
◎ Tool Holder is produced in accordance with DIN 69880.
◎ Driven Coupling is according to SPUR MT TOEM.
◎ ER Collet is according to DIN6499.
◎ For left hand and right hand turret.
◎ Further option : 6000 RPM
◎ Gear Ratio：1：1
◎ R.P.M.：Max. 4,000 RPM
| Model No. | A | B | D | E | F | G | H | I | J | K | L | M | N | N.W. (KG) |
| THB-D07.102-60D | 102 | 104 | 60 | 54 | 75 | 89 | 116 | ER50(12~34) | 78 | 16 | 78 | 100 | 154 | 14 |
Unit:mm
